Speedtech Performance Subframe Comparison: 1967–69 Camaro & Firebird, 1968–74 Nova

When it comes to transforming the handling, ride quality, and performance of your classic GM muscle car, few upgrades make as big an impact as a complete front subframe replacement. Whether you’re cruising the streets in a ’68 Nova, carving corners in a ’69 Camaro, or building a track-ready Firebird, Speedtech Performance offers a lineup of high-performance subframes designed to fit your goals. In this article, we’ll compare our three options — the Pro Touring Subframe, the ExtReme Subframe, and the ExtReme XS — all engineered for the 1967–69 Camaro and Firebird and the 1968–74 Nova. From street-driven muscle to all-out race builds, we’ll help you choose the best foundation for your next-level project. For enthusiasts aiming to modernize their classic GM F-body and X-body vehicles, Speedtech Performance offers three notable subframe options:

1. Pro Touring Front Subframe

2. ExtReme Subframe

3. ExtReme XS Subframe

Each caters to different performance goals, from street cruising to competitive track racing.

Front ExtReme Steering Angle

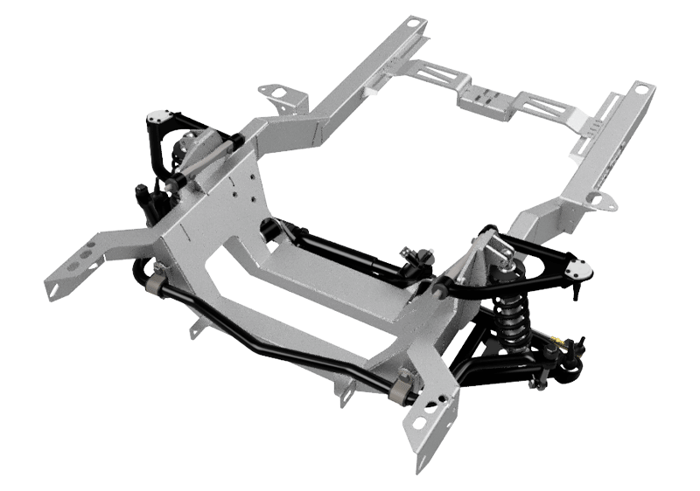

Pro Touring Subframe

Ideal for: Drivers seeking enhanced street performance and occasional track use.

Key Features:

• Boxed Construction: Welded frame and crossmembers increase torsional rigidity.
• Improved Motion Ratio: Optimized for better suspension response.
• Weight Reduction: Lighter than factory frames, aiding in overall vehicle performance.
• Ease of Installation: Factory alignment holes simplify the mounting process.
• Spindle options: Engineered to utilize either a factory or the Speedtech spindle.
• Optional Adjustable Coilovers: Tuned for ride height and comfort.
• Big Brake Clearance: Easily accepts 13”+ brake packages.
• Engine Mount Flexibility: Available with LS, SBC/BBC, or LT mounts.

This subframe offers a big upgrade from stock giving a balance between performance and daily drivability, making it a solid choice for Pro Touring builds.

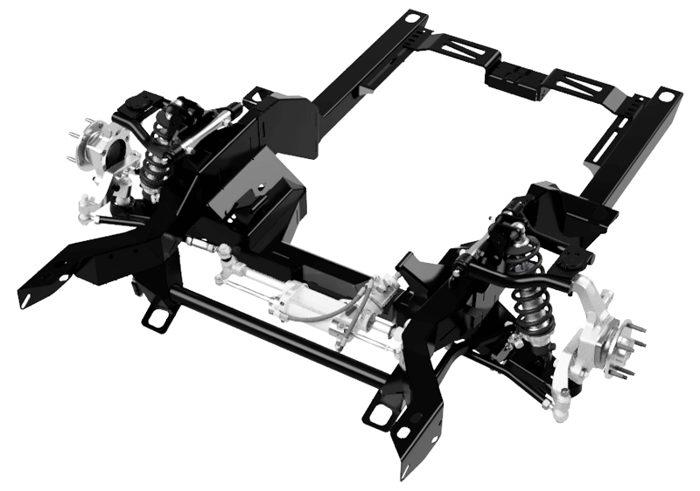

ExtReme Front Subframe

ExtReme Subframe

Ideal for: Enthusiasts aiming for aggressive handling and track readiness.

Key Features:

• Box-Welded Design: Delivers superior torsional rigidity for better handling under load and increased chassis longevity.
• Adjustable Coilover Shocks: Adjustable shocks allow fine-tuning of ride quality and handling response for street driving, autocross, or track use.
• Optimized Motion Ratio: Offers quicker shock response and more precise suspension tuning, ideal for autocross or track conditions.
• .005” Bump Steer: Near-zero bump steer throughout full suspension travel ensures stable, predictable steering input.
• Optimized Ackerman Geometry: Provides up to 20% more inside tire grip for sharper turn-in and faster exits.
• 7075 Forged Aluminum Spindles: Aircraft-grade forged components with optimized geometry improve KPI/SAI and reduce scrub radius for more mechanical grip.
• 30° ± Steering Angle: Maintains excellent maneuverability and responsiveness even with wide tires and aggressive alignments.
• C5/C6 Brake Pattern & C7 Hubs: Factory-fit, sealed hub system offers low maintenance and opens up a wide range of aftermarket brake options.
• Custom Ride Height & Tire Fitment: Tailor your stance without compromising performance—accommodates 315/30/18s with full travel and clearance.
• Engine Mount Flexibility: Available with LS, SBC/BBC, or LT mounts.

The ExtReme Subframe is tailored for those who demand high performance on both the street and the track.

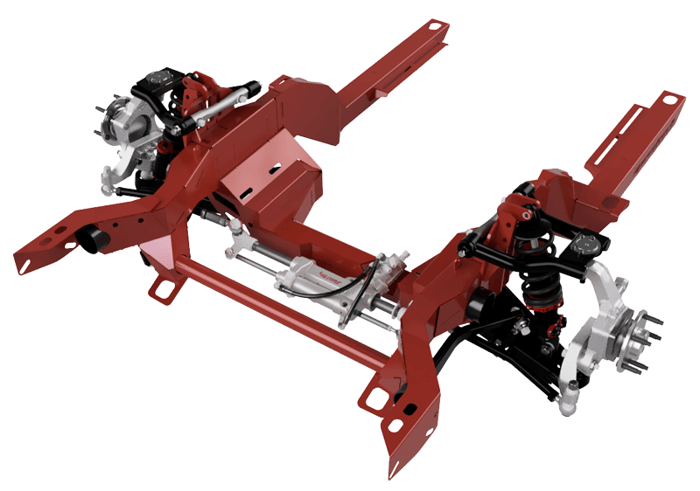

ExtReme-XS Front Subframe

Comparison Summary

Final Thoughts

Choosing the right subframe depends on your performance goals:

• Pro Touring Front Subframe: Best for those seeking improved street performance with occasional track days.
• ExtReme Subframe: Ideal for drivers desiring aggressive handling and frequent track use.

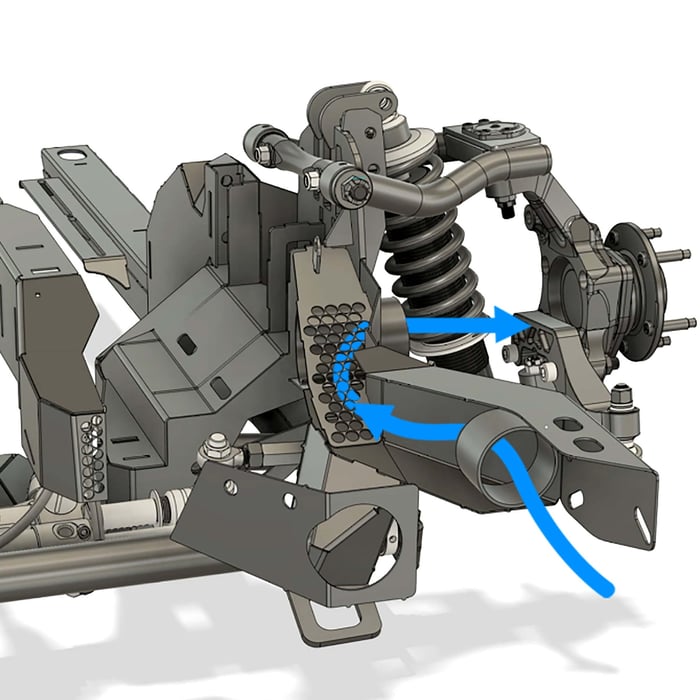

• ExtReme XS Subframe: Tailored for competitive racers where weight savings and brake cooling are paramount.

Each of these subframes is compatible with the 1967–69 Camaro and Firebird and the 1968–74 Nova, ensuring a fit for your classic GM muscle car.
