Choosing the Right Chassis Solution for Your Chevelle, GTO, Cutlass, Skylark, or El Camino

The GM A-Body platform is one of the most iconic muscle car foundations ever built. From 1964-1972, these cars delivered big-block power, aggressive styling, and timeless appeal. But while the bodies have stood the test of time, the factory chassis underneath leaves plenty of room for improvement.

Whether you're building a weekend cruiser, a Pro Touring machine, or a street-and-track weapon, Speedtech Performance offers a solution that matches your goals and budget.

Option 1: Upgrade Your Factory Frame

The factory GM A-Body frame was designed during an era when tire technology, horsepower levels, and handling expectations were far different than they are today. At its core, the original chassis uses a stamped C-channel frame rail design that is notoriously prone to torsional twist and flex.

As power levels increase and suspension grip improves, that frame flex becomes even more apparent. During hard cornering, acceleration, and braking, the chassis can twist significantly, causing inconsistent suspension behavior, unpredictable handling, and a disconnected driving experience.

Many enthusiasts focus solely on suspension upgrades, but suspension components can only perform as well as the structure they're attached to.

That's where the Speedtech Performance Frame Brace Kit comes in.

The Speedtech Frame Brace Kit transforms the factory chassis by boxing in the flimsy C-channel frame rails with laser-cut steel plates while adding strategically placed front-to-rear bracing tubes and cross-bracing throughout the center of the chassis. The system also ties directly into key suspension mounting locations, creating a dramatically stronger and more rigid structure. The result is a chassis that resists flex, responds more predictably, and allows the suspension to work as intended.

When combined with  suspension systems, coilovers, control arms, and shocks, owners can achieve a significant improvement in ride quality, handling, and driver confidence while retaining the original frame and architecture of the vehicle.

Best For:

• Budget-conscious performance builds
• Street-driven muscle cars
• Restomod projects retaining the factory frame
• Owners looking to maximize the performance of bolt-on suspension upgrades

Product Links: 1964-1967 1968-1972

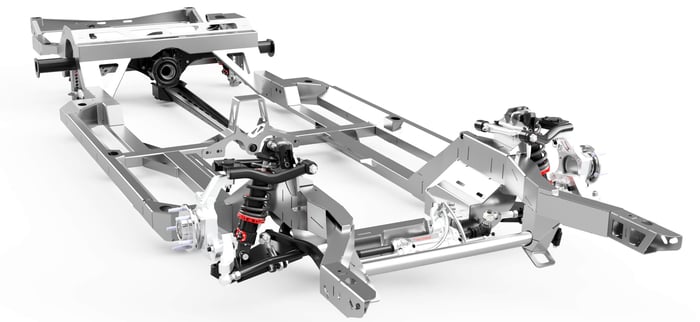

Option 2: Speedtech ExtReme Torque Arm Chassis

The Ultimate Street & Track Foundation

For enthusiasts seeking modern sports car handling without compromise, the Speedtech ExtReme Torque Arm Chassis represents a complete rethinking of the A-Body platform.

At the front, Speedtech's proprietary ExtReme Geometry delivers exceptional steering response, improved camber control, and dramatically increased front tire capability. Designed around modern performance tires and wheel packages, the chassis accommodates up to 315mm front tires while maintaining full steering clearance. Combined with forged aluminum spindles, precision rack-and-pinion steering, and adjustable coilovers, the result is a level of front-end grip and confidence that simply isn't possible with factory architecture.

But the real differentiator lies in the rear suspension.

Unlike traditional aftermarket 4-link systems, the ExtReme Chassis utilizes a Torque Arm rear suspension. A Torque Arm controls axle rotation separately from suspension articulation, allowing the rear suspension to move freely without the binding commonly associated with many triangulated 4-link designs.

The benefits are substantial:

•    Improved ride quality

•    Better traction under acceleration

•    More predictable handling

•    Superior suspension articulation

•    Enhanced stability during braking and cornering

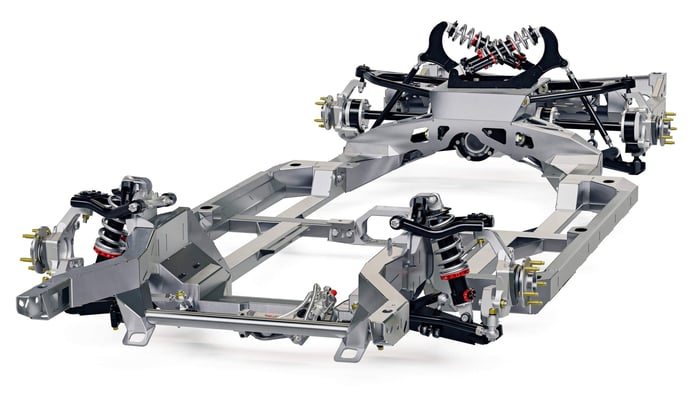

Option 3: Speedtech ExtReme IRS Chassis

The Pinnacle of A-Body Performance

For builders who refuse to compromise, the Speedtech ExtReme IRS Chassis represents the highest level of performance available for the 1964-1972 GM A-Body platform. Combining Speedtech's race-proven ExtReme front suspension geometry with its award-winning Independent Rear Suspension system, this chassis delivers the kind of grip, ride quality, and adjustability typically reserved for modern supercars.

Up front, the chassis utilizes the same ExtReme Geometry found in the Torque Arm chassis, featuring optimized suspension pickup points, forged aluminum spindles, rack-and-pinion steering, and clearance for up to 315mm front tires. The result is exceptional steering response, improved camber gain, increased front-end grip, and predictable handling whether you're cruising on the highway or attacking an autocross course.

The real magic happens at the rear.

Unlike a solid axle, where both rear wheels are connected and react together, Speedtech's Independent Rear Suspension allows each wheel to respond independently to road conditions. This dramatically improves ride quality, rear tire contact patch consistency, stability over uneven pavement, and overall cornering performance. The suspension remains composed over bumps and transitions, keeping the tires planted and maximizing available grip.

What truly sets the Speedtech IRS apart is its incredible level of adjustability. The system allows builders to precisely dial in:

• Camber adjustment for maximizing tire contact during cornering
• Toe adjustment for straight-line stability or aggressive turn-in response
• Caster adjustment for improved high-speed confidence and steering feel
• Ride height adjustment to achieve the perfect stance and center of gravity
• Shock tuning and spring rate options to tailor the chassis for street driving, autocross, road racing, or long-distance cruising

This level of tuning capability allows owners to build a car that is comfortable enough for a cross-country road trip, yet capable of competing at the highest levels of Pro Touring competition.

The Signature Overhead Cantilever System

For those looking to build the ultimate showcase and performance vehicle, Speedtech offers its signature Overhead Cantilever Shock System.

Rather than mounting the coilovers directly to the lower control arms like a traditional IRS setup, the cantilever design utilizes precision-machined billet rocker arms mounted high in the chassis. As the suspension cycles, pushrods transfer wheel movement through the rocker system, compressing the shocks from above.

The benefits go far beyond appearance:

• Optimized motion ratios for enhanced suspension tuning
• Increased shock travel and control
• Reduced unsprung weight
• Improved packaging around the rear suspension
• Easier access for shock adjustment and service
• Exceptional visual appeal when the trunk is opened

The overhead system has become one of the most recognizable features of a Speedtech chassis. The billet rockers, pushrods, and exposed engineering create a true "wow factor" while providing real performance benefits on both the street and track. It's a perfect example of form following function with race-inspired technology that looks as good as it performs.

Gas Monkey Garage A-body SEMA Build with IRS

This is the same award-winning IRS technology that has been featured on some of the industry's most recognizable builds, including the Richard Rawlings and Gas Monkey Garage SEMA A-Body. Whether your goal is a world-class Pro Touring car, a national-level autocross competitor, or simply the best-driving A-Body possible, the ExtReme IRS Chassis delivers modern sports car performance without sacrificing the soul of a classic muscle car.  (Check out GMG Video)

Traditional Coilover Mounting

For builders preferring a more conventional setup, the IRS chassis is also available with a traditional direct-mount coilover configuration while retaining all of the suspension's performance advantages.

The result is a rear suspension system that delivers remarkable grip, ride quality, and control whether the vehicle is being driven on the street, at an autocross event, or during full track-day sessions.

Best For:

• High-end Pro Touring builds
• SEMA-quality show cars
• Autocross and road course enthusiasts
• Builders seeking maximum adjustability
• Owners wanting the ultimate blend of ride quality and performance
• Anyone looking for modern supercar-inspired handling in a classic GM A-Body

Product Links: 1964-1967 1968-1972

Which Chassis Is Right For You?

Frame Brace Kit + QA1 Suspension

Perfect for owners who want to improve handling and rigidity while retaining the factory frame.

ExtReme Torque Arm Chassis

The ideal balance of performance, durability, traction, and value for aggressive street and track driving.

ExtReme IRS Chassis

The ultimate A-Body solution, delivering modern supercar-inspired suspension technology and uncompromising performance.

No matter your goals, Speedtech Performance offers a proven path to transform your 1964-1972 GM A-Body into a vehicle capable of handling today's horsepower, tire technology, and driver expectations.
